Telco Infrastructure Solution

QCT offers 5G end-to-end solutions spanning from data center, core network, access network deployment, to on-premise applications, as well as full-spectrum off-the-shelf hardware including storage, NFVI, DU/CU servers and uCPE, to drive fundamental changes in the way telco operators plan, deploy, and manage their infrastructure with greater flexibility, scalability and cost-effectiveness.

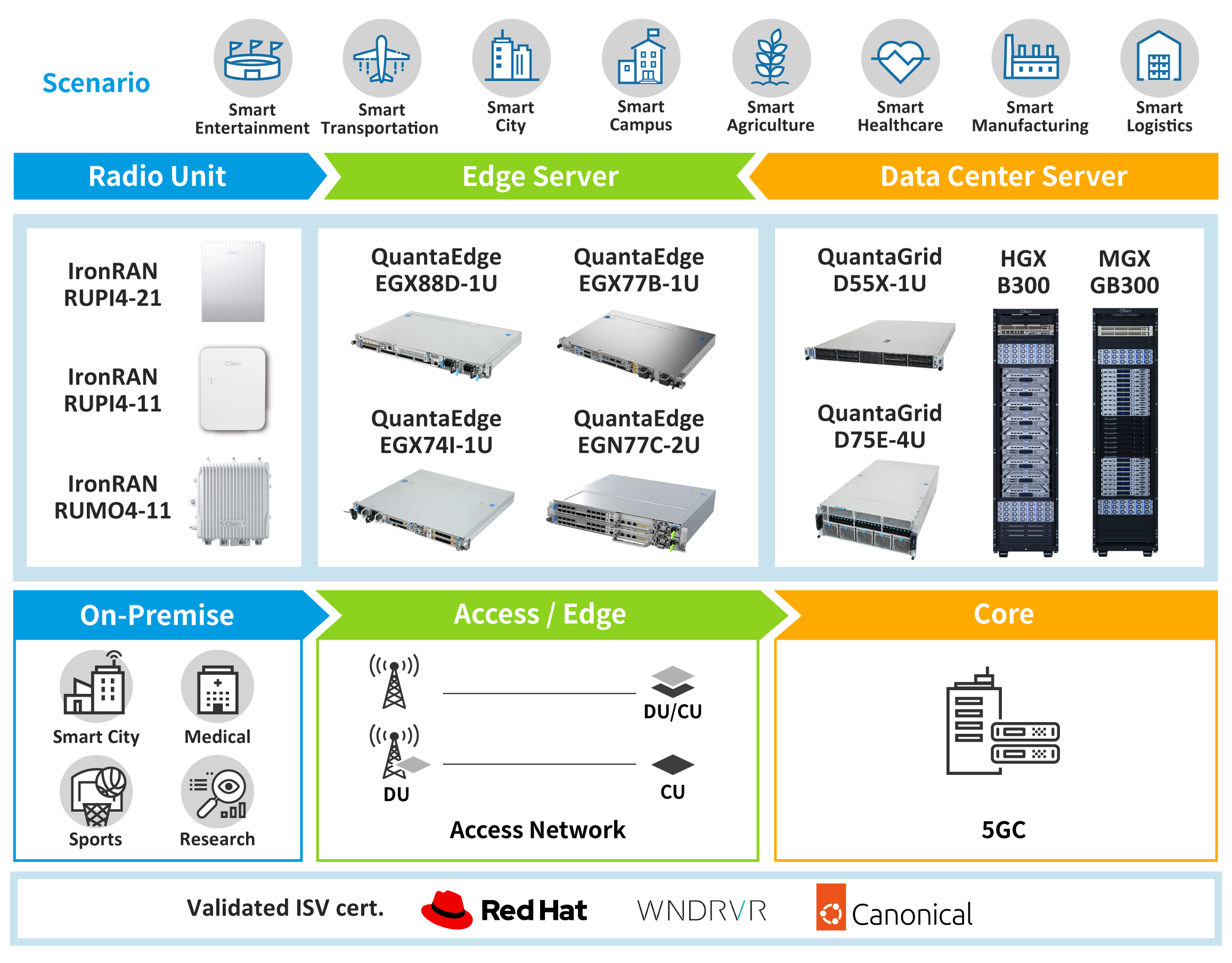

END-TO-END 5G SOLUTION

QCT Telco Solutions

Public Network:

SD-WAN

uCPE is one of the most flexible and powerful ways to build a software-defined service at the edge site. Learn how QCT’s uCPE builds a better network.
Learn more about IronBox Solution >

IronBox uCPE

flexiWAN Certified SD-WAN Solution
EGT23D-DT 2 / 4 / 8 / 12-Core
uCPE with Intel Atom® C3000 SoC

Connectivity: WAN, LAN, Wireless and LTE/5G
Fanless Design: Noiseless for office environment

IronBox uCPE with flexiwan SD-WAN Solution reduces Multi-Protocol Label Switching (MPLS) usage and creates a dedicated line between branches and headquarter for network communication.
Example Case of uCPE Architecture

QuantaEdge EGT23D-DT

Processor Intel Atom® Processor C3000 Series, up to 25W
Memory(1) 2400MHz DDR4 SO-DIMM ECC / non ECC up to 32GB
Storage (1) 16GB eMMC
(1) SATA3 2.5" SSD
Network Controller (2) 1 GbE RJ45 with Intel® I210 LoM
(4) 1 GbE RJ45 with Marvell 88E1543 LoM
(1 pair bypass optional)
(1) 1 GbE RJ45 console port
Expansion Slot(1) Mini-PCIe for Wi-Fi
(1) M.2 B Key for LTE/5G
Form Factor Tabletop
Dimensions (W) 270mm x (H) 46mm x (D) 180mm
Operating Temperature 0°C to 45°C

Open RAN

With mature COTS servers that make up a comprehensive lineup of DU/CU servers, QCT enables mass deployment of Open RAN.
Learn more about IronEdge solution >

MEC

Mobile Edge computing or Multi-Access Edge Computing (MEC) creates a new ecosystem of enterprises and operators, who can work together to offer more use cases to users over networks.
Learn more about IronEdge for MEC >

NFV Cloud Platform

QCT builds an Open and Flexible Cloud Platform with strong support from the NFV ecosystem, decoupling multiple functions from dedicated hardware appliances and moving 4G/5G VNFs, CDN and MEC applications to a VM/container environment.
Learn more about IronCloud Solution >
IronCloud- NFV Infrastructure Platform from Data Center to Edge
IronCloud is QCT’s Network Function Virtualization Infrastructure (NFVI) product line for telecom operators. Under strong partnership and collaboration with NFV ecosystem partners including Robin.io, Red Hat, and Wind River, QCT IronCloud is built to decouple numerous functions, such as 4G EPC, 5G Core, BBU vRAN software, Content-Delivery Network (CDN) and Multi-Access Edge Computing Service (MEC), from dedicated hardware, and allows easy migration from legacy network infrastructure to virtual machines (VM) and containers, reducing operators’ costs and accelerating service deployment.
IronCloud-
Robin Cloud-Native Platform
  • Cloud-native end-to-end orchestration with automated service delivery
  • Application-aware infrastructure with QCT NUMA-balanced hardware
  • Optimized QCT hardware with an elastic and agile application platform
Learn more about IronCloud- Robin Cloud Native Platform

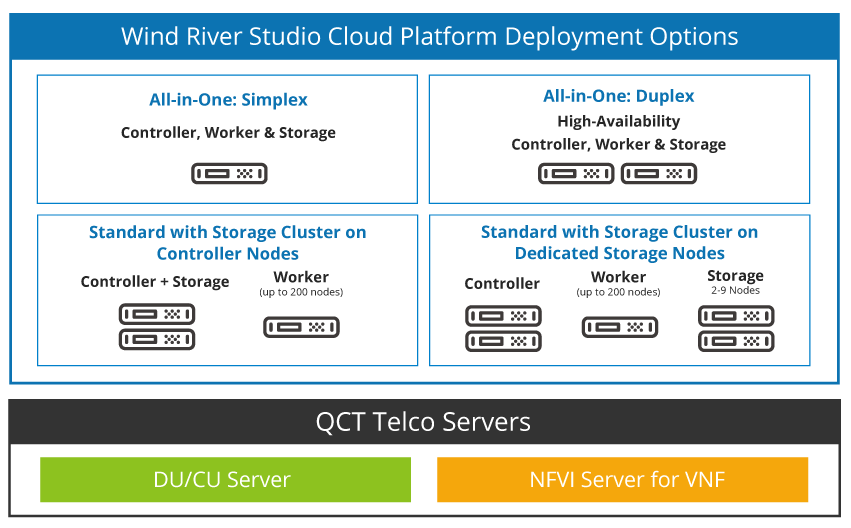

IronCloud –
Wind River Studio Cloud Platform
  • Pre-validated solution on top of QCT’s optimized servers for telco operators
  • Carrier-grade networking
  • Supports small-footprint, single-node deployment for edge environments
Learn More about IronCloud- Wind River Studio Cloud Platform

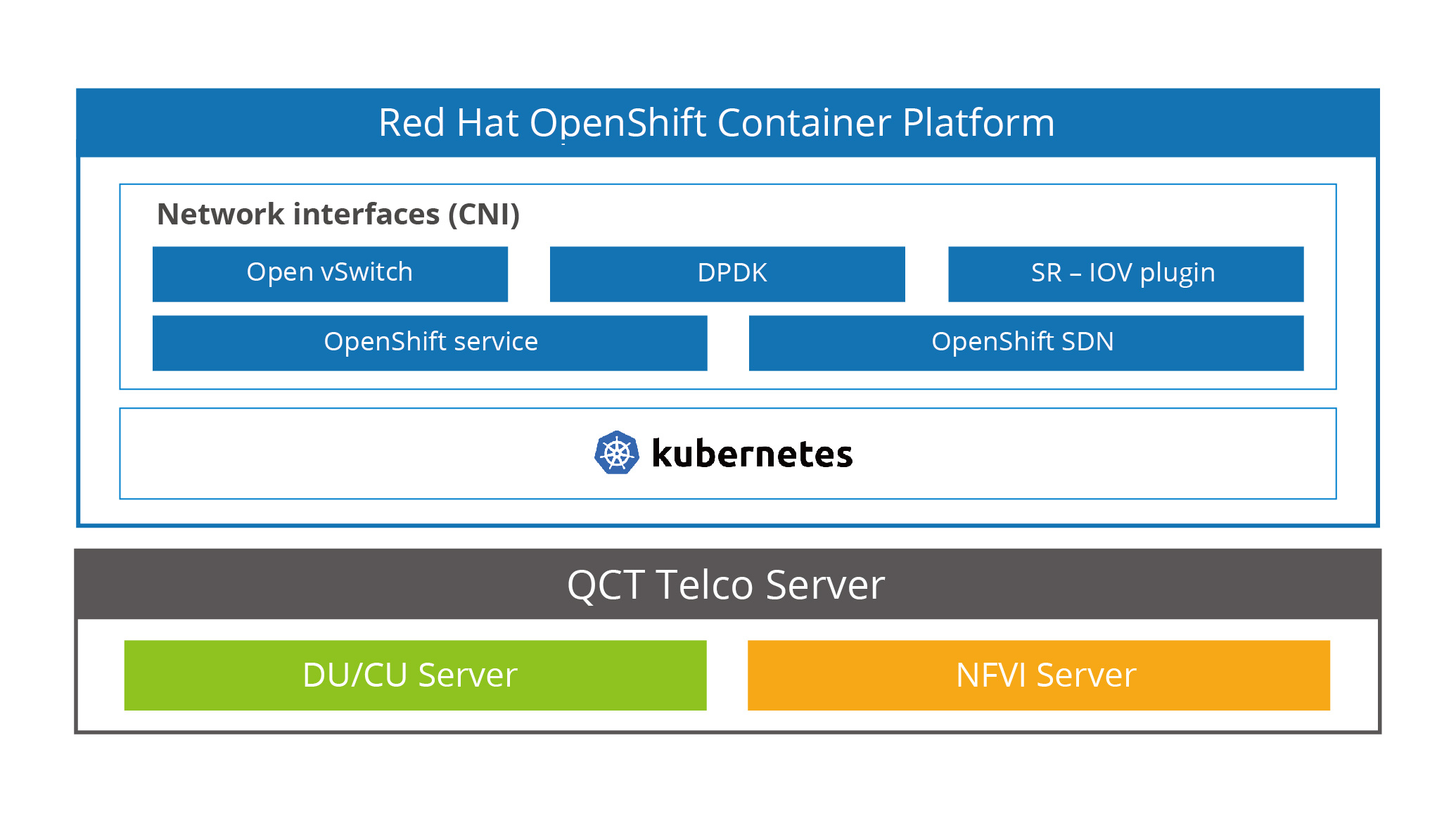

IronCloud-
Red Hat OpenShift Container Platform

  • Hybrid cloud platform with management and auto-scaling flexibility

  • Scalable, secure, and enterprise-grade application platform

  • Optimized cloud-native platform on QCT Telco Server

Learn more about Red Hat OpenShift Container Platform

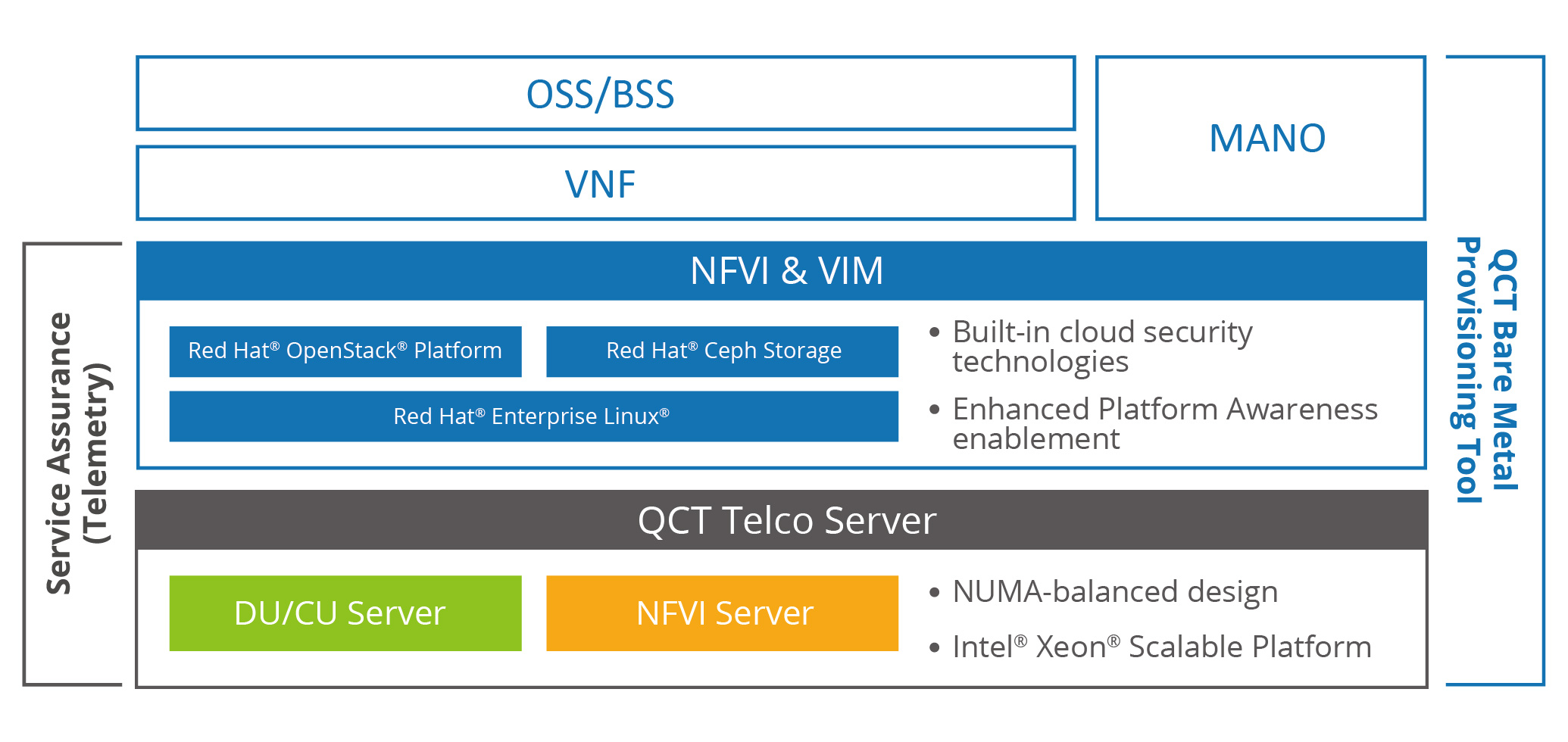

IronCloud-
Red Hat OpenStack Platform
  • Provides reliable virtualization computing cloud platform with QCT’s optimized servers
  • Achieves optimal network performance via an enhanced platform awareness (EPA) design
  • Has built-in cloud security technologies such as SELinux to prevent intrusions and protect data

Private 5G Network:

Enterprise 5G

With a comprehensive hardware portfolio and solution deployment know-how, QCT is taking the lead in helping enterprises capture the value of 5G private networks, unlocking a whole world of use cases for businesses to stay ahead of the game in this age of rapid digital transformation.
Learn more about OmniPOD solution

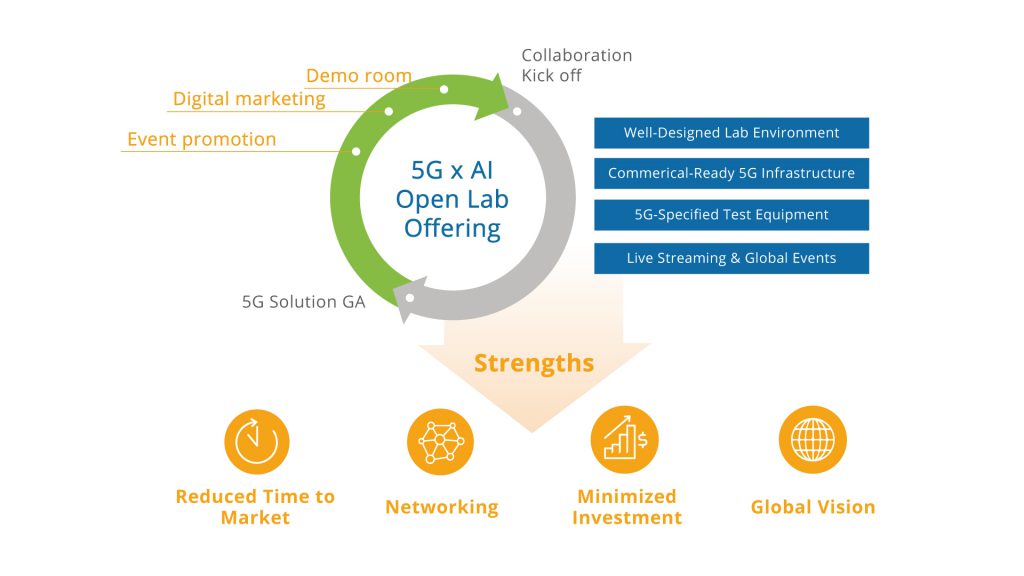

5G x AI Open Lab

Click HERE to join the QCT 5G x AI Open Lab Partner Community ​

Ecosystem Partners

QCT works in collaboration with partners worldwide to realize the immense possibilities of 5G ​

Datasheet

5G Use Case at the Edge Site – Visual Intelligence based on Intel Edge Insights for Industrial (EII)

Download

QCT Enterprise 5G End-to-End Use Case Solution – SmartAMR (EN)

Download

Brochure

QCT Telco Product Portfolio (EN)
Download

QCT OmniPOD-Enterprise 5G (EN)

Download

White paper

Design for the Future: Telco Cloud Infrastructure (EN)

Download
5G Use Case at the Edge Site – Cloud Gaming (EN)
Download

Solution brief

QCT 5G Indoor Positioning Solution (EN)

Download

5G Use Case at the Edge Site – Visual Intelligence based on Intel Edge Insights for Industrial (EII)

Download
Closed-Loop Automation Solution for Enhancing 5G Service Availability using Telemetry Insight (EN)
Download

QCT Enterprise 5G End-to-End Use Case Solution – SmartAMR (EN)

Download
5G Use Case at the Edge Site – SmartAR (EN)
Download

5G Use Case at the Edge Site – SmartXR (EN)

Download

Visual Cloud in 5G Era​

Download

Contact QCT

For additional QCT 5G technical resources, please provide your contact information to complete your download.

QCT 5G technical resources

  1. Telco Product Portfolio (including uCPE)
  2. Datasheet (EN)- QxStack with Red Hat OpenStack Platform
  3. Technical Brief (EN)- QxStack with Red Hat OpenStack Platform
  4. Reference Architecture (EN)- QxStack with Red Hat OpenStack Platform
  5. Datasheet (EN)- QxStack with Red Hat OpenStack Platform for Edge Infrastructure
  6. Datasheet (EN)- QxStack with Cloud-Native Platform (OpenShift)
  7. Technical Brief (EN) - QCT Validated Kubernetes Platform with Enhanced Platform Awareness
  8. Whitepaper (EN)- Next Generation Central Office (NGCO) solution
  9. Solution Brief (EN)- QCT and netElastic Optimized vBNG Solution for Next Generation Central Office
  10. Solution Brief (EN)- Visual Cloud in 5G era
  11. Solution brief (EN) - ISS-NFVI forwarding platform (vBNG)
For additional QCT 5G technical resources, please provide your contact information to complete your download.
