QxStack with Cloud Native Platform

Pre-validated container platform to accelerate cloud native applications

Cloud native technology has been highlighted in modern cloud infrastructure design for its light weight and high portability. It also achieves efficient development and operation (DevOps), thereby facilitating agile service deployment and business innovation. To accelerate cloud-native transformation at minimized expenses, QCT tailored and validated the Red Hat® OpenShift Container Platform and Kubernetes Platform to ensure high-quality service and performance.

Efficiency and Agility

Extraordinary network performance that brings high value to the company.

High Scalability

Outstanding extendibility and flexibility achieved by integrating Ceph storage into HCI architecture.

Ultimate Density

Optimized model and configuration for the Red Hat OpenShift Container Platform

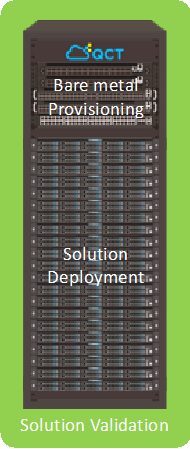

QCT Auto-Deployment Tool

Save Most of the Time Needed to Build a Virtualization Environment

  • Save on the time and cost of training for an OpenStack deployment
  • One-click deployment for full automation, reducing the manual process and keeping human error to a minimum
  • Optimized and fine-tuned configuration for switch provisioning based on the OpenStack Platform architecture
QCT QxStack with Cloud Native Platform
  • Red Hat OpenShift Container Platform
  • QCT Validated Kubernetes Platform

Accelerating cloud native applications with superior network performance, extendibility, and stability

QCT QxStack with Cloud-Native Platform is a Platform as a Service (PaaS) solution built on the Red Hat® OpenShift® Container Platform and strengthened by Intel Enhanced Platform Awareness (EPA) technology. The production-ready performance-optimized solution features a Hyper Converged Infrastructure (HCI) architecture that supports VMs and container coexistence and allows resource sharing. Furthermore, with exceptional network performance and stability, the solution achieves ideal CAPEX and OPEX in all stages of new technology implementation.

Solution Architecture & RA Design

Specification

Switch
Management SwitchNode Qty: 1
48 10/100/1000BAE-T(4) 1/10GbE SFP+ ports
Top-of-Rack (ToR) SwitchNode Qty: 2
48 10/25GbE SFP28(8) QSFP28 ports
Infra Node
Node Qty: 1
CPU: 2x 22 coreStorage: 2x 480G SSD SATA
RAM: 192~384 GBNIC: 1x 25 GbE dual ports
Controller Node
Node Qty: 3
CPU: 2x 22 coreStorage: 2x 480G SSD SATA
RAM: 192~384 GBNIC: 4x 25 GbE dual ports
DPDK/SR-IOV Compute Node
Node Qty: N≥ 3
CPU: 2x 22 coreStorage: 2x 480G SSD SATA
RAM: 192~384 GBNIC: 4x 25 GbE dual ports
DPDK/SR-IOV Compute Node
Node Qty: N≥ 3
Storage:96~120TB Raw Capacity
3x 240G SATA SSD (for Journal)
1x SATADOM 128GB (for boot OS)
NIC: 1x 25 GbE dual ports

Downloads

  • Red Hat OpenShift Container Platform

    Datasheet (EN)- QxStack with Cloud-Native Platform

    (EN)

    Download

    Technical Brief (EN)- QxStack with Cloud-Native Platform

    (EN)

    Download

Agile, flexible, and high-throughput performance platform to accelerate network transformation

The QCT-validated Kubernetes platform with Enhanced Platform Awareness (EPA) brings high interoperability and agility in workload orchestration. The platform features enhanced data-plane networking, resource isolation, and hardware capability discovery, which are tailored for Network Function Virtualization (NFV) workloads to achieve stable and reliable orchestration for cloud-native applications with promising deterministic performance.

Solution Architecture & RA Design

Specification

Downloads

  • QCT Validated Kubernetes Platform

     Technical Brief (EN) - QCT Validated Kubernetes Platform with Enhanced Platform Awareness

    (EN)

    Download
