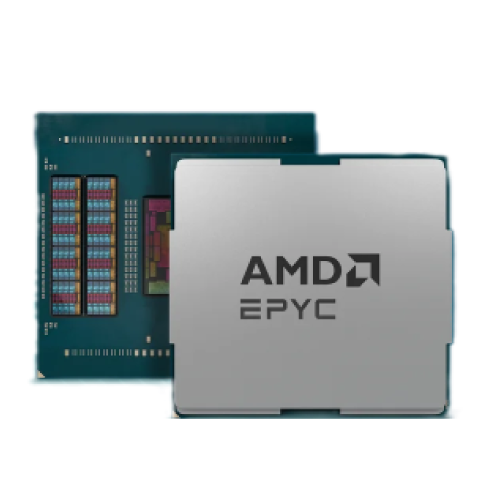

AMD EPYC™ 7002 Series Processor

Get a jump start today on tomorrow’s datacenter

  • Up to 64 AMD Zen2 cores / 128 threads
  • 2X L2 cache size of previous gen (512KB L2 cache per core,  32MB total L2 cache)
  • 4X  L3 cache size of previous gen (16 MB shared L3 per 4 cores, 256MB total L3 cache)
  • 8 channel DDR4 with ECC, 2 DIMM per Channel
  • Memory Frequency up to 3200 MHz
  • Supporting 16Gb devices
  • Supporting RDIMM, LRDIMM, NVDIMM-N, 3DS DIMM
  • 128 lanes PCIe 4.0 of 16 Gb/s bandwidth
  • Up to 4 xGMI-2 coherent interconnect with 16 GT/s bandwidth.
  • Extra PCIe 2.0 x1 lane per socket for server controller hub (USB, UART, SPI, lPC, I2C, etc.)


Breakthrough Performance


  • Dual 64-core AMD EPYC™ 7002 series processors score more than twice as the 2-Socket competitor in system level performance.
  • The 2nd Gen EPYC™ CPU gained over 200% improvement on CPU and memory processing than the 1st Gen.

* Performance data all based on dual socket QCT platforms from QCT lab.

* EPYC 7002 data based on pre-production sample with AGESA 1.0.0.0 for early reference. Test result with MP CPU and final AGESA may be updated without prior notice.


SpecCPU 2017 SPECrate Integer

Node performance with Integer workloads


+219% than competitor’s top bin CPU

+130.2% than EPYC™ 7601


SpecCPU 2017 SPECrate FP

Node performance with floating point workloads


+84.4% than competitor’s top bin CPU

+85.7% than EPYC™ 7601


Stream

Pure memory throughput


+41.7% than competitor’s top bin CPU

+16.8% than EPYC™ 7601


High-Performance Linpack (HPL)

CPU and memory processing


+13.9% than competitor’s top bin CPU

+213.3% than EPYC™ 7601



AMD EPYC™ Servers by QCT

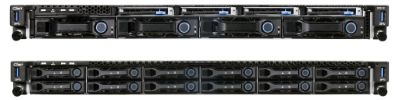

QuantaGrid D43K-1U

Ultimate 1U Server with EPYC Performance Breakthrough

  • Dual AMD EPYC processor with up to 4TB memory capacity
  • Up to 5 expansion slots optimized for PCIe 4.0 and AI workloads
  • Enhanced serviceability with tool-less, hot-swap designs
  • 2.5" SKU3.5" SKU
    Processor(2) AMD EPYC™ 7002 Series Processor, up to 225W TDP (240W cTDP)
    MemoryUp to 4TB memory capacity with (32) DDR4 DIMM slots. Supporting 3200 Mhz 1DPC
    Storage(12) 2.5" U.2 SSD(4) 3.5" SATA/SAS drives
    Optional (4) 9mm NVMe/SATA/SAS drives
    Network Controll(1) OCP 3.0 mezzanine
    (2) 1 GbE dedicated management port
    Expansion Slot(1) PCIe 4.0 x8 SAS mezzanine slot
    (1) PCIe 4.0 x8 OCP 3.0 mezzanine SFF slot
    (2) PCIe 4.0 x16 FHHL or (3) PCIe 4.0 x16 HHHL
    Form Factor1U Rackmoun

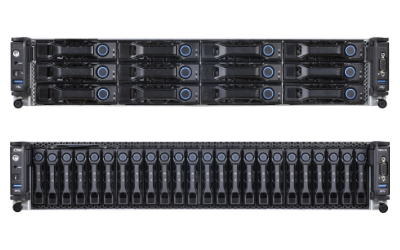

    QuantaGrid D43KQ-2U

    Highly Scalable “EPYC” 2U Server Built for AI

  • Scalable configurations, Built for Al
  • Diversified l/0 options for diversified workloads
  • Full Featured design optimized for PCIe 4.0
  • SKULFF Pure SATA/SAS SKULFF Tiered SKUSFF Pure SATA/SAS Expander SKUSFF Tiered Expander SKUSFF Pass Through SKUSFF SKU - All NVMe
    Processor(2) AMD EPYC™ 7002 Series Processor, Up to 225W TDP (240W cTDP1)
    MemoryUp to 4TB memory capacity with (32) DDR4 DIMM slots. Supporting up to 3200 Mhz 1DPC2.
    Drive BayFront
    (12) 3.5” SATA/SAS drive
    Front
    (4) 3.5" SATA/SAS drives
    (8) 3.5"/2.5" SATA/SAS/NVMe drives
    Front
    (24) 2.5" SATA/SAS drives via Expander
    Front
    (16) 2.5” SATA/SAS +
    (8) 2.5" SATA/SAS/NVMe (SAS/SATA via SAS Mezz)
    Front
    (16) 2.5” SATA/SAS PTP + (8) 2.5" SATA/SAS/NVME
    (SAS/SATA via SAS Mezz)
    Front
    (24) 2.5” NVMe SSD
    Rear (Optional)
    (2) U.2 SSD
    Rear (Optional)
    (2) U.2 SSD
    Rear (Optional)
    (2) U.2 SSD
    Rear (Optional)
    (2) U.2 SSD
    Rear (Optional)
    (2) 2.5 “ SATA/NVMe SSD
    Rear (Optional)
    (2) 2.5" SATA drives
    Expansion SlotOption 1
    (1) PCIe 4.0 x8 SAS mezz slot
    (2) PCIe 4.0 x16 FHHL
    (4) PCIe 4.0 x8 FHHL
    Option 2
    (1) PCIe 4.0 x8 SAS mezz slot (4) PCIe 4.0 x16 FHHL
    Option 2 [Support (2) Dual width GPU]
    (1) PCIe 4.0 x8 SAS mezz slot (4) PCIe 4.0 x16 FHHL
    Optional
    (1) PCIe x8 HHHL
    (1) PCIe x16 HHHL or (2) Rear U.2 SSD
    Network Controller(1) PCIe 4.0 x8 OCP 3.0 mezz slot
    (1) Dedicated 1 GbE management port
    Power Supply1+1 High efficiency redundant hot-plug Platinum/Titanium 1600W/2200W AC PSU, 1600W -48V DC PSU
    Form Factor2U Rackmount

    QuantaGrid S43KL-1U

    Revolutionary Single Socket Compute Server

    • An “EPYC” single socket compute server to challenge traditional dual socket systems
    • TC0 optimized yet Al enabled
    • Feature optimized for PCIe 4.0 deployment
    SFF SKULFF SKU
    Processor(1) AMD EPYC™ 7002 Series Processor, up to 225W TDP (240W cTDP)
    MemoryUp to 2TB memory capacity with (16) DDR4 DIMM slots. Supporting 3200 Mhz 1DPC
    Storage(12) 2.5" hot-plug SATA/NVMe SSD(4) 3.5" SATA/SAS drives
    (4) 9mm NVMe/SATA/SAS drives (optional)
    Network Controll(1) OCP 3.0 mezzanine
    (2) 1 GbE dedicated management port
    Expansion Slot(1) PCIe 4.0 x8 SAS mezzanine slot
    Option 1: (2) PCIe 4.0 x16 HHHL & (1) PCIe 4.0 x8 HHHL
    Option 2: (2) PCIe 4.0 x16 FHHL
    Form Factor1U Rackmoun

    QuantaGrid D42A-2U

    All NVMe Server Perfect for CDN & Big Data Analytics

    • Perfectly compatible with both EPYC™ 7001 and 7002 Series Processors
    • Supports up to 24 U.2 NVMe SSDs
    • Up to two PCIe x16 slots for up to 2x 100GbE NICs
    • All tool-less design with easy service motherboard tray
    All Flash SKUNVMe Over Fabric SKU
    Processor(1) AMD EPYC™ 7000 Series Processor, Up to 200W TDP
    MemoryUp to 2TB memory capacity with (16) DDR4 DIMM slots
    Storage(24) 2.5" hot-plug SATA/NVMe SSD(20) 2.5" hot-plug SATA/NVMe SSD
    Network Controll(1) OCP 2.0 mezzanine Type A
    (2) 1 GbE dedicated management port
    Expansion Slot(1) PCIe 3.0 x8 OCP 2.0 mezzanine Type A
    (1) PCIe 3.0 x16 HHHL or (2) PCIe 3.0 x8 HHHL
    (1) PCIe 3.0 x8 OCP 2.0 mezzanine Type A
    (2) PCIe 3.0 x16 HHHL or (1) PCIe 3.0 x16 +
    (2) PCIe 3.0 x8
    Form Factor2U Rackmoun

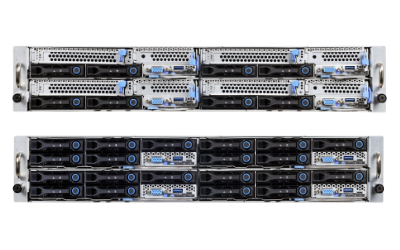

    QuantaPlex S43CA-2U

    Density Optimized “EPYC” Multi-node Server

    • High Density server design powered by the latest AMD EPYC™ 7002 Series processors
    • Single socket EPYC processor with 16 DIMMS per node optimized for compute-centric Data Center requirements
    • Front-access cold-aisle hyperscale serviceability
    • The QuantaPlex S43CA-2U is a multi-node server that supports the next generation of powerful AMO EPYC™ processors
    • Each of the Aggregated networking infrastructure for reduced TC0
    ProcessorAMD EPYC™ 7002 series Processor per node, up to 225W TDP (240W cTDP)
    Memory(16) DDR4 DIMM slots. Supporting 3200 Mhz 1DPC
    Front IOOption 1:
    (1) PCIe 4.0 x16 FHHL expansion slot per node
    (1) PCIe 4.0 x16 HHHL expansion slot per node
    (2) 2.5" hot-plug NVMe/SATA SSD per node
    Option 2:
    (6) 2.5" hot-plug NVMe/SATA SSD per node
    Onboard Storage(2) 2280/22110 NVMe M.2 per node
    NetworkSingle/Dual 25G port per node
    Rear IO(1 or 2) single/dual 100G port pass-through modul
    Form Factor2U Rackmount, 4 nodes


    TOOL-LESS DESIGN


    Out of the many build designs QCT has tested over the years, our one-click innovations provide the greatest efficiency and quickest time-to-value. This no-screw, one-touch feature is applied on every device to reduce operational error, service time and resource cost, from component all the way up to datacenter level, immensely boosting datacenter uptime.

    • AMD-LFF_Drive_Bay
    • AMD-SFF_Drive_Bay
    • AMD-PCIe_Riser_Bracket
    • AMD-Fan_Module


    ADVANCED COOLING

    Thoughtfully engineered thermal designs increase the efficiency and stability of cooling subsystems, delivering the most precise CFM and power required while minimizing power consumption at peak performance.


    Redundant Cooling for High Availability

    Thoughtfully engineered thermal designs increase the efficiency and stability of cooling subsystems, delivering the most precise CFM and power required while minimizing power consumption at peak performance.


    Engineering Air Flow


    Smart Fan Mechanism

    QCT’s patented smart fan table is cleverly devised to adjust fan duty dynamically according to ambient temperature, CPU utilization, and system workload to avoid over-cooling.
